Part series DT06-12SA-P012

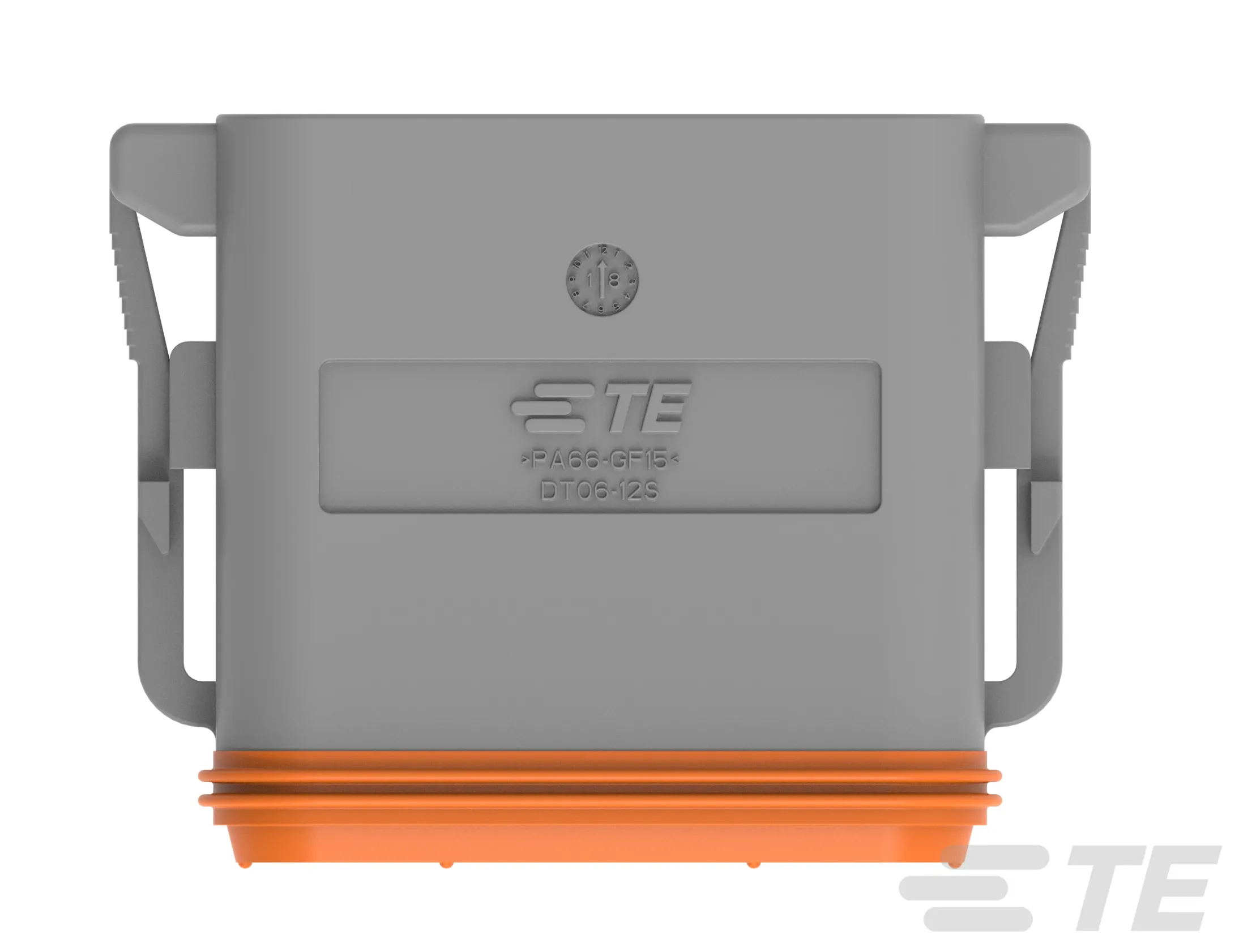

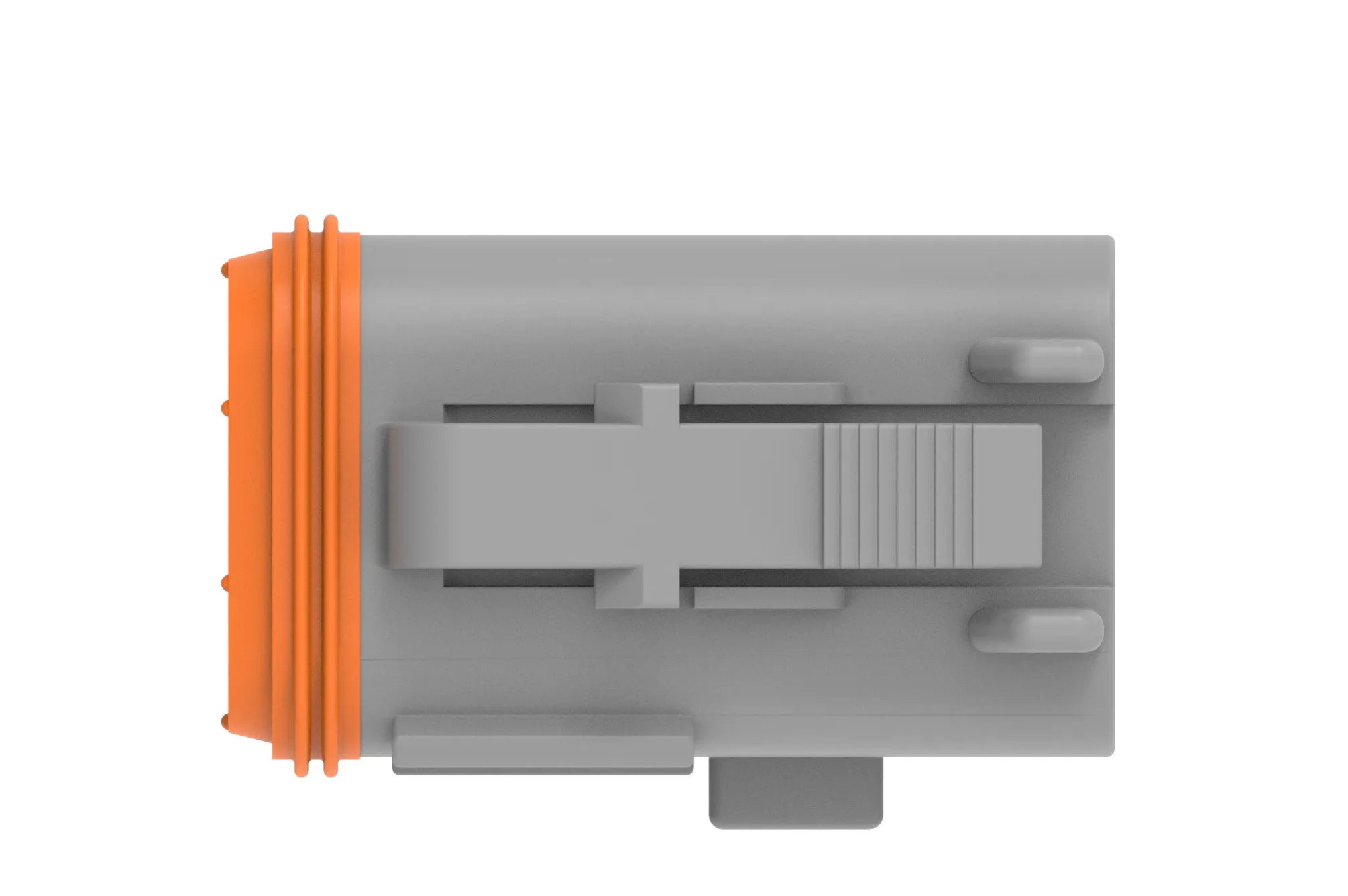

Automotive Connectors SZ 16 DT 12 WAY PLUG GREY
TE Internal #: DT06-12SA-P012
TE Internal Description: PLG, 12P, GRY, N, SEAL RET, ENH KEY, A
Nominal Voltage Architecture (V): 12 | 24 | 48
Connector & Housing Type : Housing for Female Terminals
Number of Positions : 12
Sealable : Yes
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Automotive Connectors SZ 16 DT 12 WAY PLUG GREY
Brand: DEUTSCH
Category: Automotive Connectors
TE Internal #: DT06-12SA-P012
TE Internal Description: PLG, 12P, GRY, N, SEAL RET, ENH KEY, A
Nominal Voltage Architecture (V): 12 | 24 | 48
Connector & Housing Type : Housing for Female Terminals
Number of Positions : 12
Sealable : Yes
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Specifications
Manufacturer
DEUTSCH
Product
Housings
Type
12-Way
Number of positions
12 Position
Pitch
9.12 mm (0.359 in)
Number of rows
2 Row
Mounting style
Cable Mount / Free Hanging
Termination style
Crimp
Mounting angle
Straight
Contact gender
Without Socket Contacts
Tradename
DT
Voltage rating
250 V
Current rating
13 A
Min operating temp
- 55 C
Max operating temp
. + 125 C
In Stock: 10000
Ready to Ship
Shipping Options
boat
(5 days)
THB
50.00
| Qty | Unit Price | Total |
|---|---|---|
| 100+ | THB 4.58 | THB 458.00 |
| 1000+ | THB 4.24 (-7.50%) | THB 4,236.50 |
| 2000+ | THB 4.05 (-11.50%) | THB 8,106.60 |
