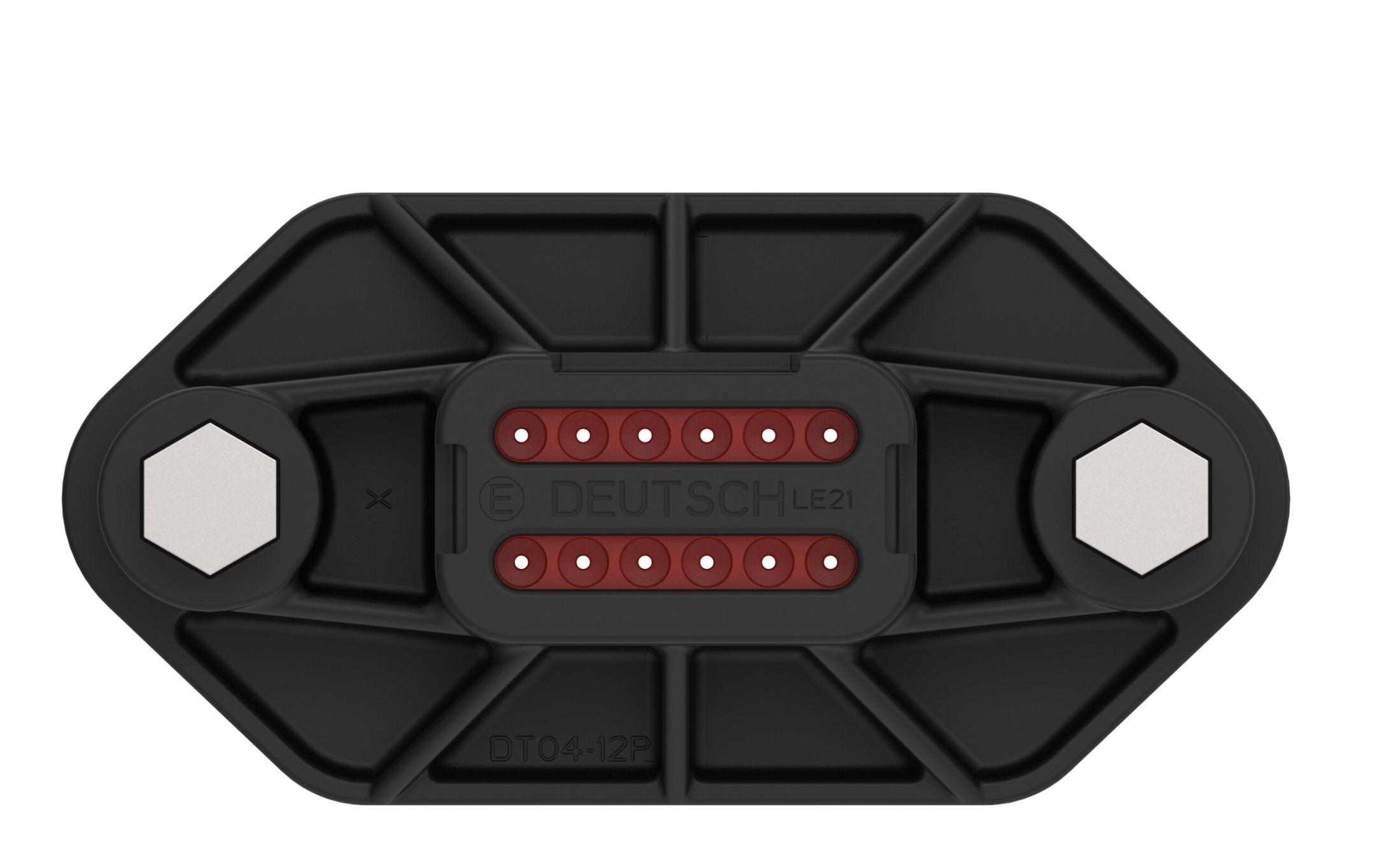

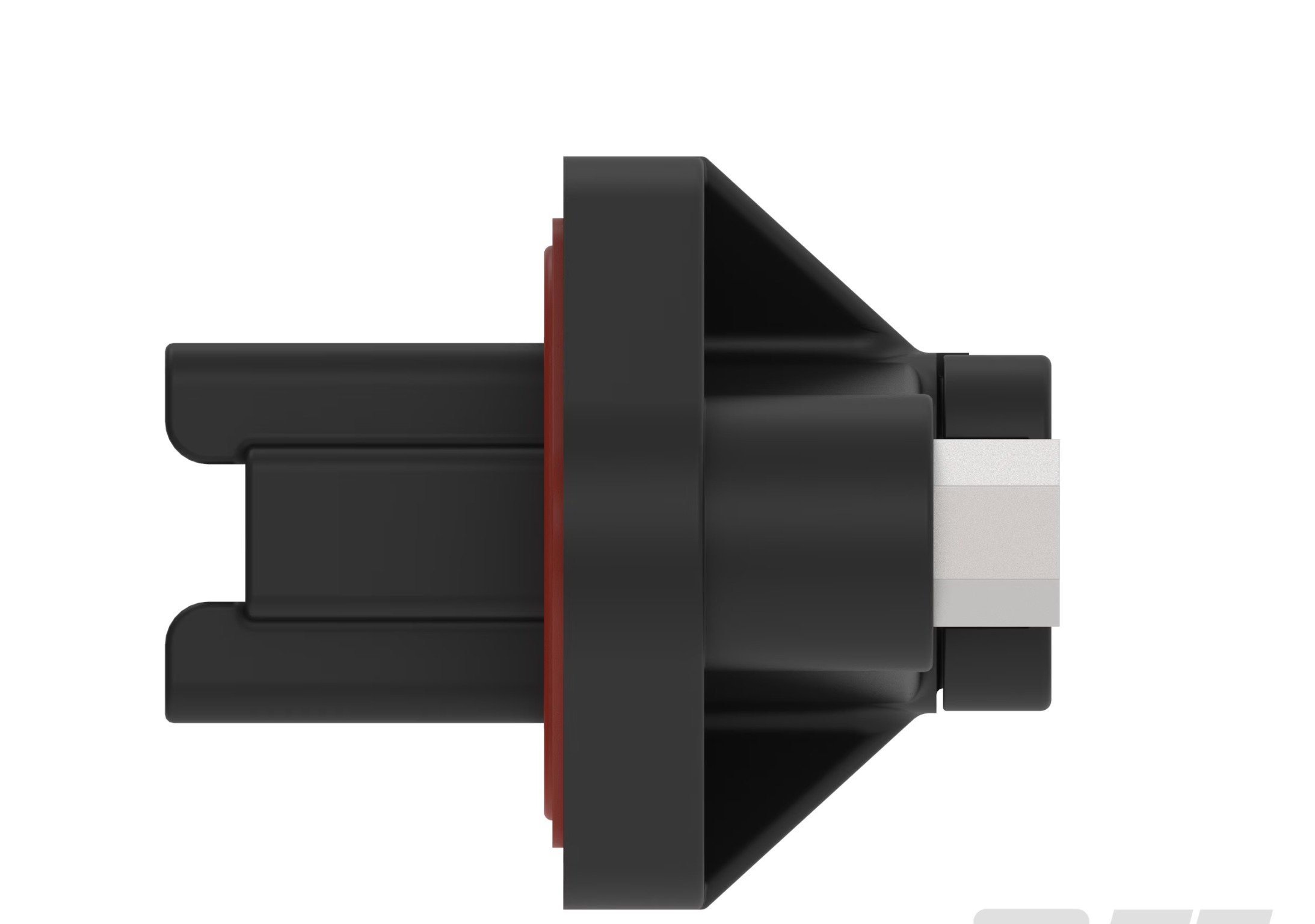

Part series DT04-12PB-LE21
Automotive Connectors REC, 12P, BLK, E, FLANGE, B
- TE Internal #: DT04-12PB-LE21
- TE Internal Description: REC, 12P, BLK, E, FLANGE, B
Nominal Voltage Architecture (V): 12 | 24 | 48
Connector & Housing Type : Housing for Male Terminals
Number of Positions : 12
Sealable : Yes
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Automotive Connectors REC, 12P, BLK, E, FLANGE, B
Brand: DEUTSCH
Category: Automotive Connectors
- TE Internal #: DT04-12PB-LE21
- TE Internal Description: REC, 12P, BLK, E, FLANGE, B
Nominal Voltage Architecture (V): 12 | 24 | 48
Connector & Housing Type : Housing for Male Terminals
Number of Positions : 12
Sealable : Yes
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Specifications
Manufacturer
DEUTSCH
Product
Connectors
Type
12-Way
Number of positions
12 Position
Pitch
9.12 mm (0.359 in)
Number of rows
2 Row
Mounting style
Mounting Flange
Termination style
Crimp
Mounting angle
Straight
Voltage rating
250 V
Current rating
13 A
Min operating temp
- 55 C
Max operating temp
. + 125 C
