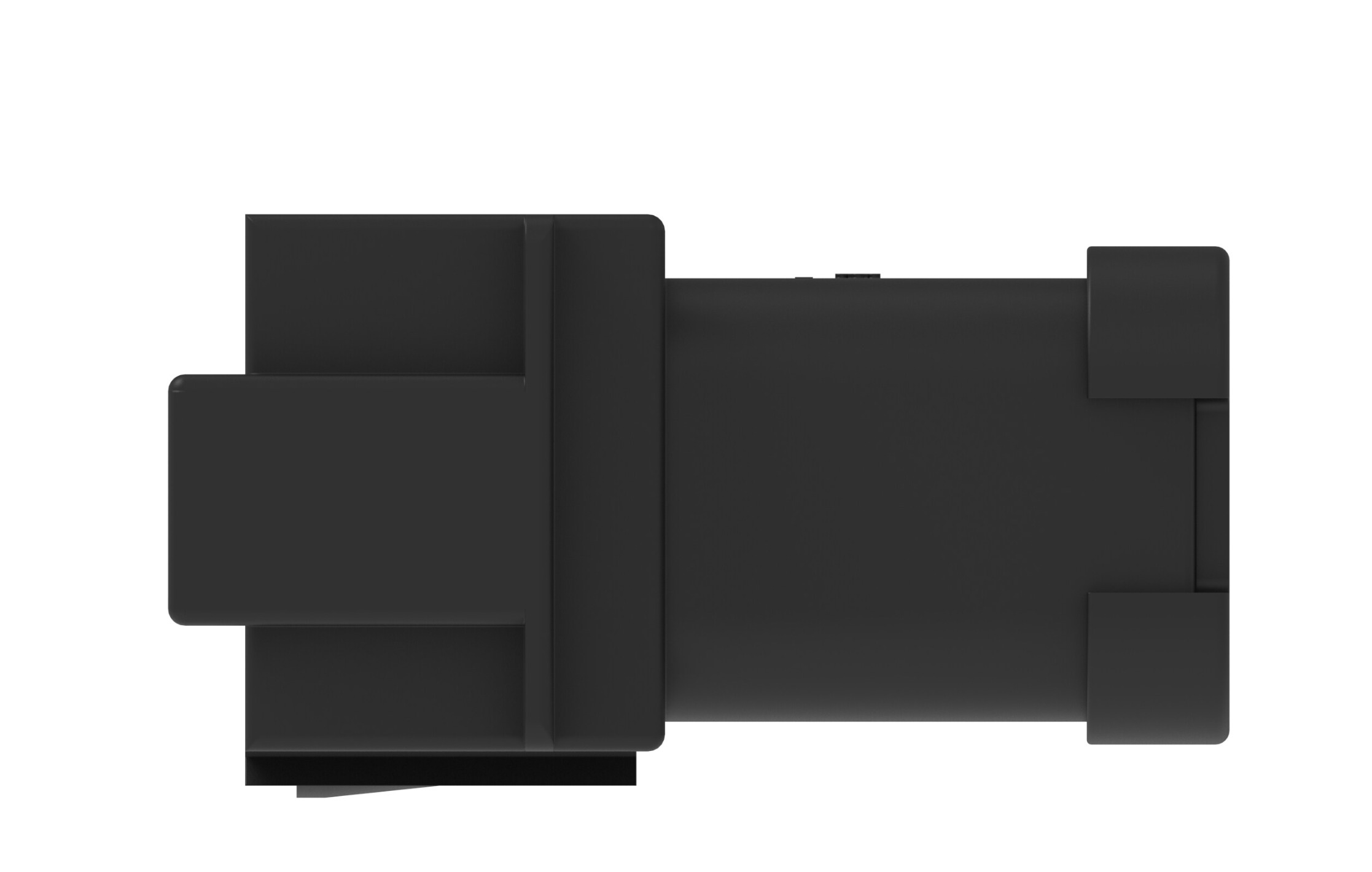

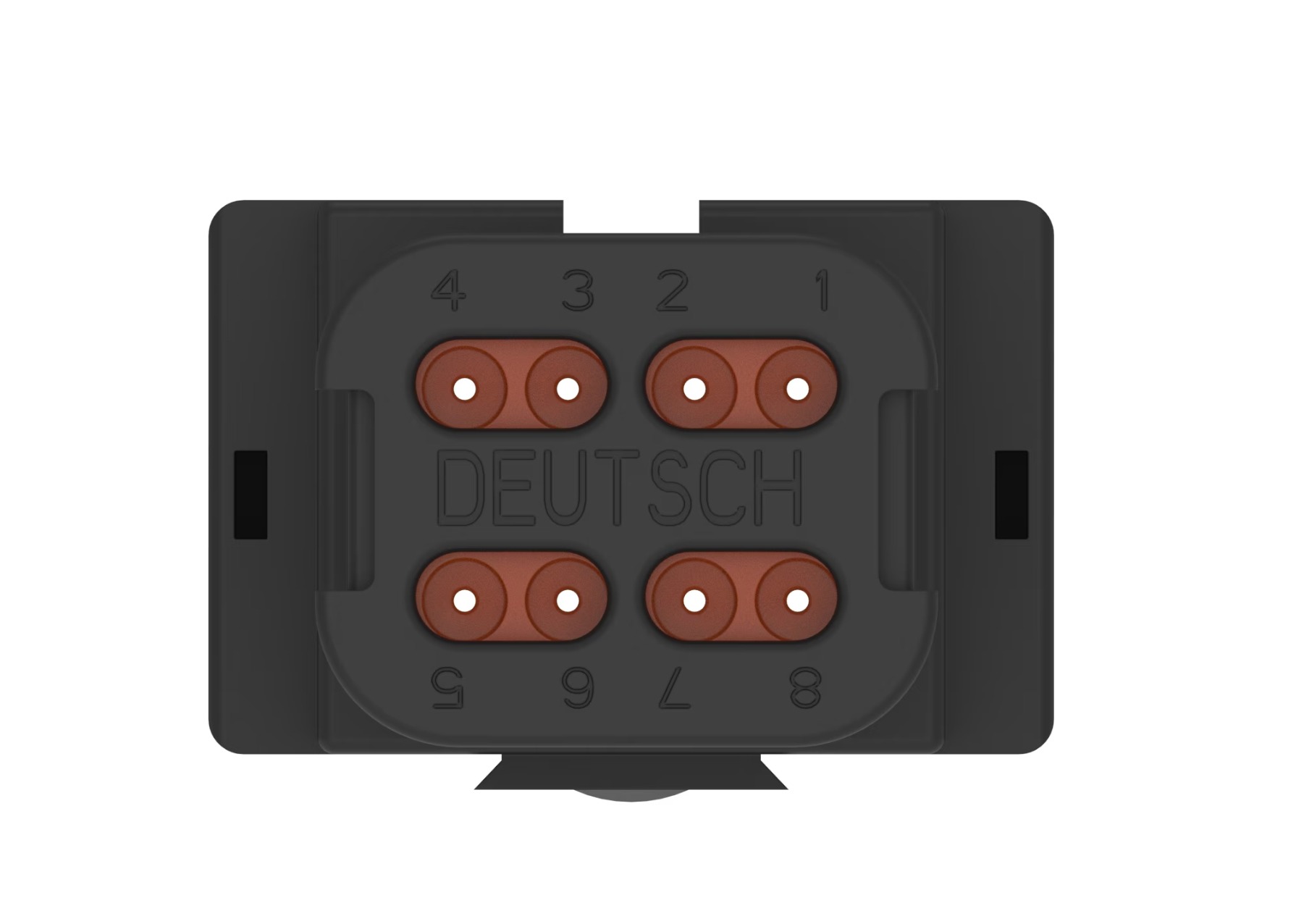

Part series DT04-08PA-E005
Automotive Connectors DT RECP ASM
- TE Internal #: DT04-08PA-E005
- TE Internal Description: REC, 8P, BLK, N, CAP, A
Nominal Voltage Architecture (V): 12 | 24 | 48
Connector & Housing Type : Housing for Female Terminals
Number of Positions : 8
Sealable : Yes
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Automotive Connectors DT RECP ASM
Brand: DEUTSCH
Category: Automotive Connectors
- TE Internal #: DT04-08PA-E005
- TE Internal Description: REC, 8P, BLK, N, CAP, A
Nominal Voltage Architecture (V): 12 | 24 | 48
Connector & Housing Type : Housing for Female Terminals
Number of Positions : 8
Sealable : Yes
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Specifications
Manufacturer
DEUTSCH
Product
Housings
Type
8-Way
Number of positions
8 Position
Pitch
9.12 mm (0.359 in)
Number of rows
2 Row
Mounting style
Cable Mount / Free Hanging
Termination style
Crimp
Mounting angle
Straight
Contact gender
Without Pin Contacts
Tradename
DT
Voltage rating
250 V
Packaging
Bulk
Current rating
13 A
Min operating temp
- 55 C
Max operating temp
. + 125 C
In Stock: 1
Ready to Ship
Shipping Options
boat
(5 days)
THB
50.00
| Qty | Unit Price | Total |
|---|---|---|
| 10+ | THB 118.54 | THB 1,185.40 |
| 25+ | THB 112.61 (-5.00%) | THB 2,815.33 |
| 100+ | THB 106.69 (-10.00%) | THB 10,668.60 |
