Part series DT06-2S-P012

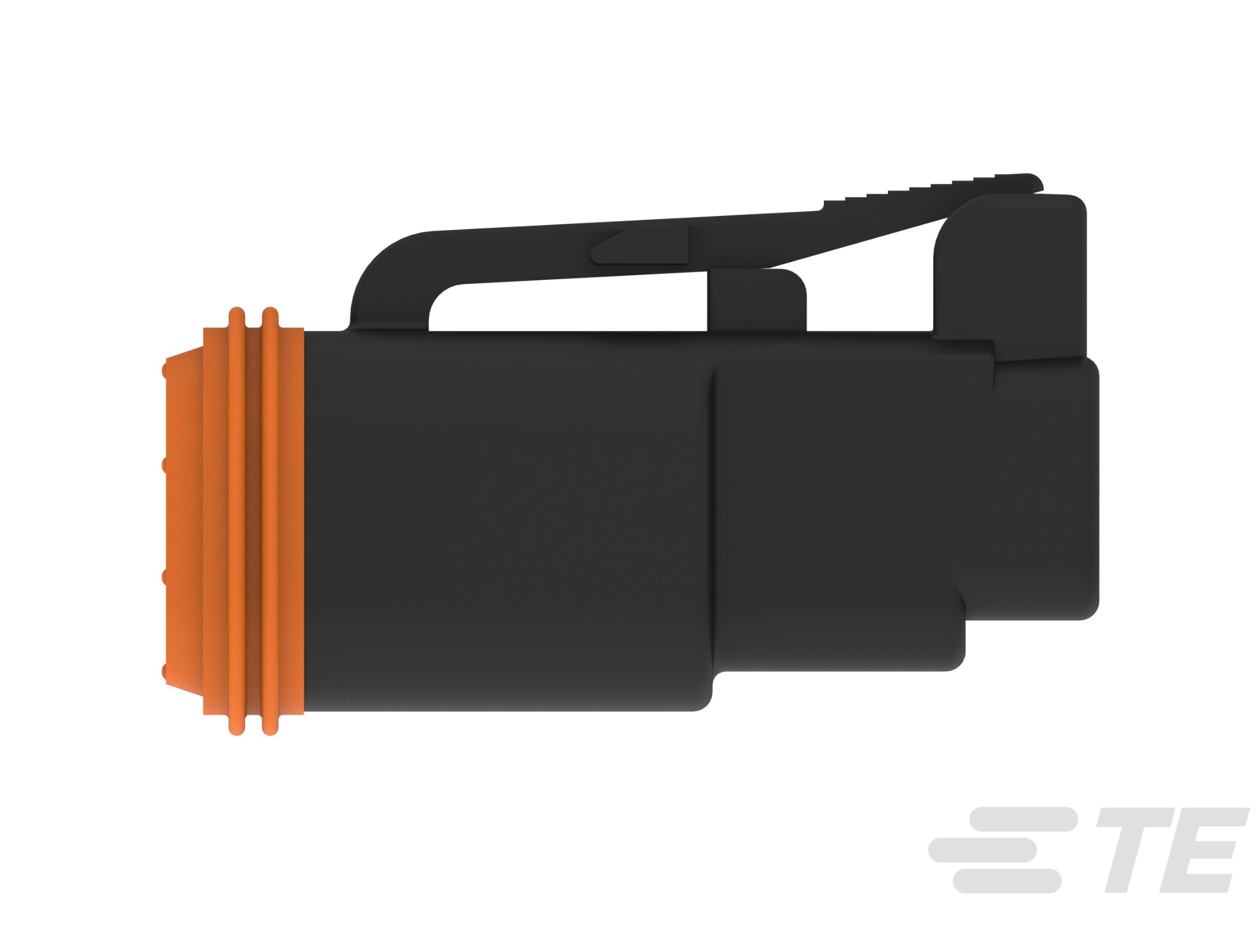

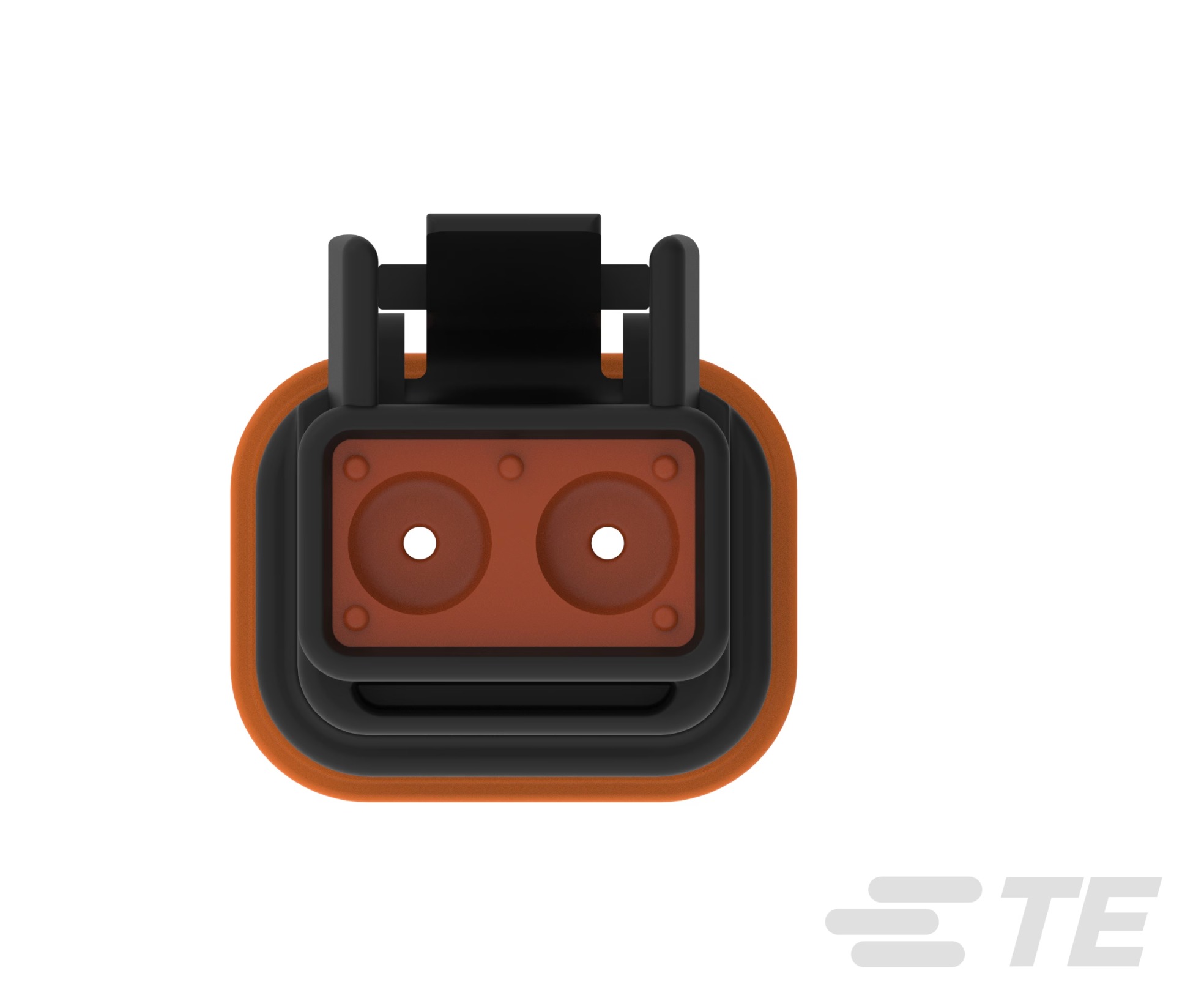

Automotive Connectors DT PLUG 2 WAY ENH SEAL RETENT
TE Internal #: DT06-2S-P012 TE Internal Description: PLG, 2P, BLK, N, SEAL RET Nominal Voltage Architecture (V): 12 | 24 | 48 Connector & Housing Type : Housing for Female Terminals Number of Positions : 2 Sealable : Yes Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Automotive Connectors DT PLUG 2 WAY ENH SEAL RETENT
Brand: DEUTSCH
Category: Automotive Connectors
TE Internal #: DT06-2S-P012 TE Internal Description: PLG, 2P, BLK, N, SEAL RET Nominal Voltage Architecture (V): 12 | 24 | 48 Connector & Housing Type : Housing for Female Terminals Number of Positions : 2 Sealable : Yes Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Specifications
Manufacturer
DEUTSCH
Product
Housings
Type
2-Way
Number of positions
2 Position
Pitch
5.46 mm (0.215 in)
Number of rows
1 Row
Mounting style
Cable Mount / Free Hanging
Termination style
Crimp
Mounting angle
Straight
Contact gender
Without Socket Contacts
Tradename
DT
Voltage rating
250 V
Packaging
Bulk
Current rating
13 A
Min operating temp
- 55 C
Max operating temp
. + 125 C
