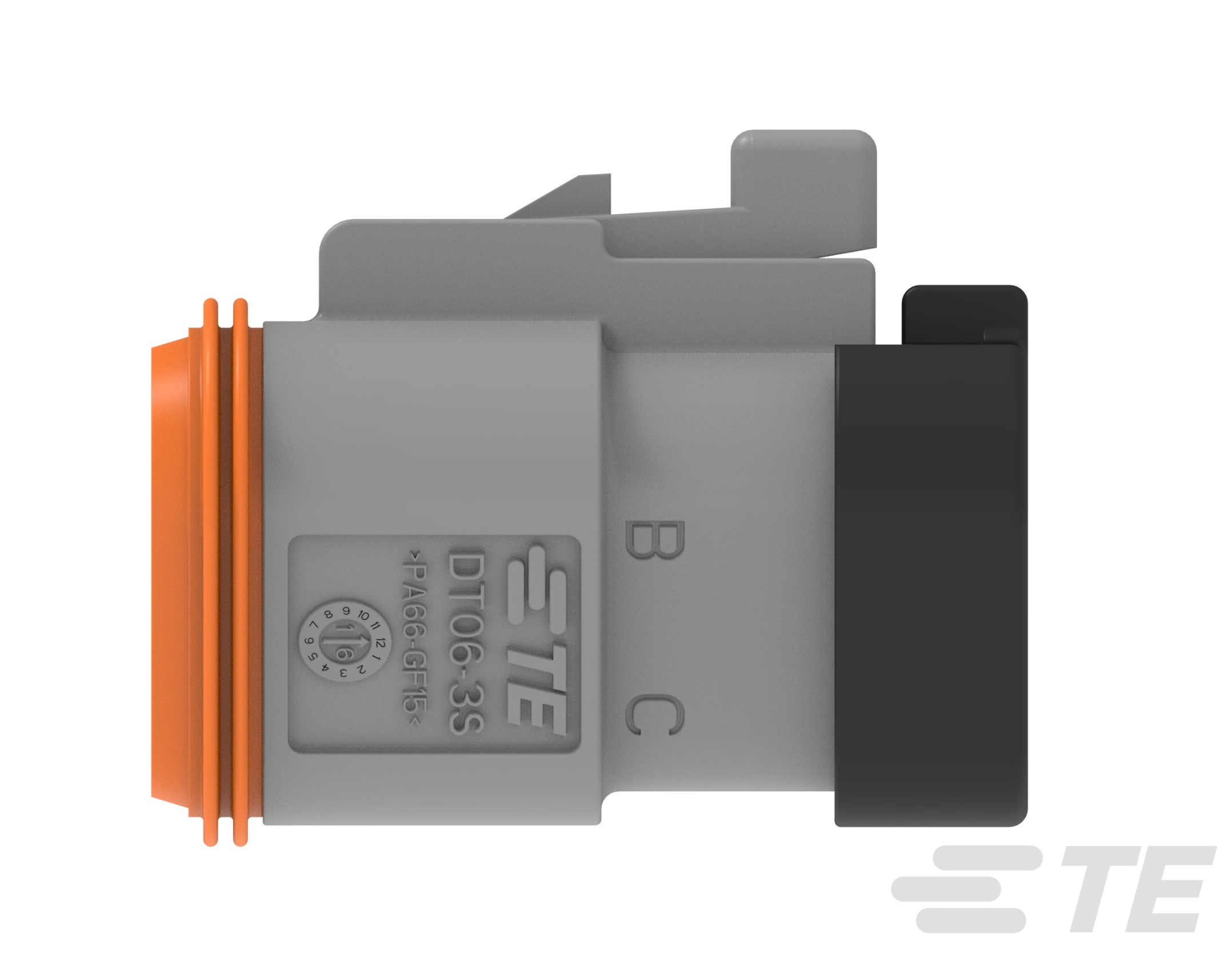

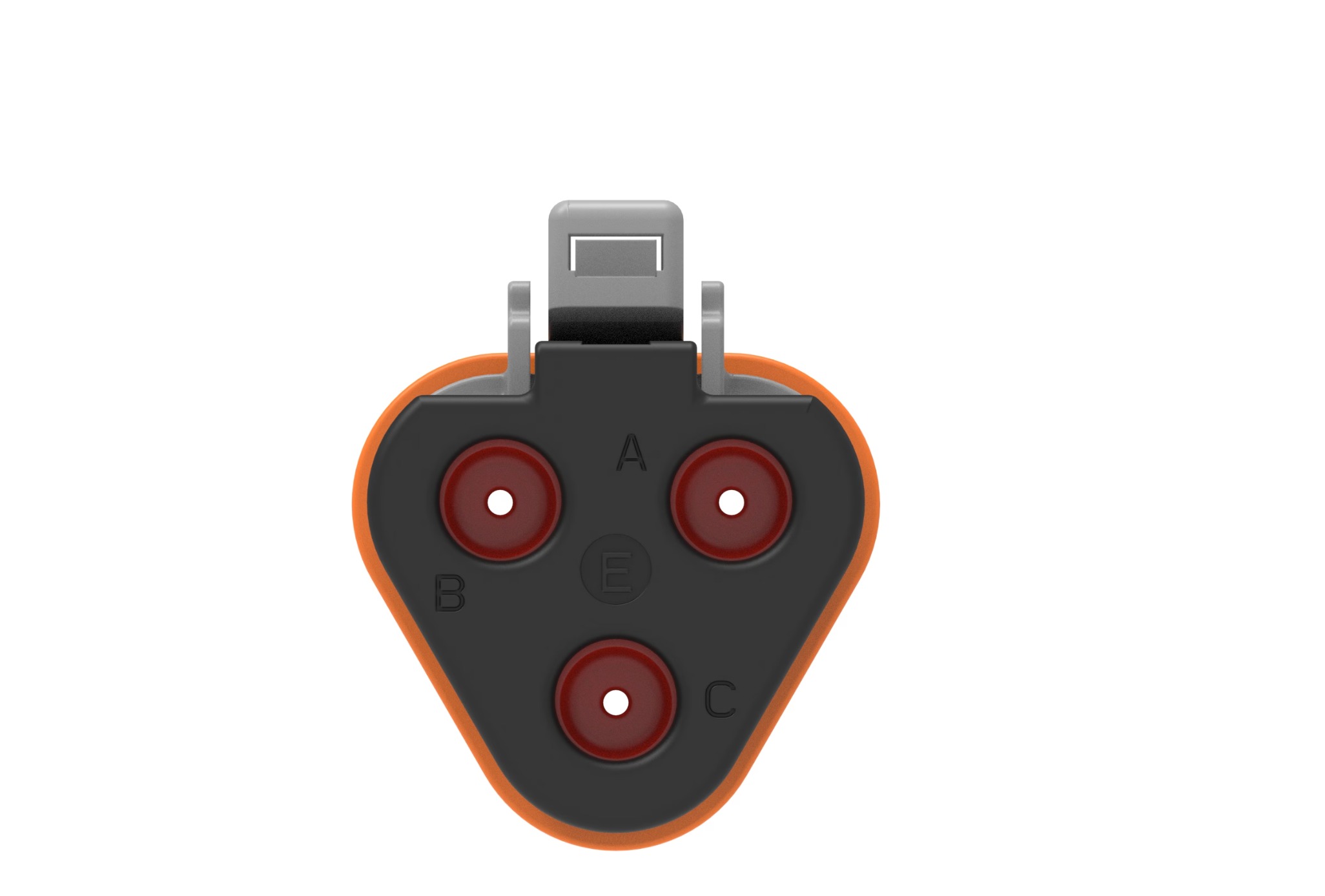

Part series DT06-3S-CE01
Automotive Connectors 3P PLUG, CE01 MOD Grey
TE Internal #: DT06-3S-CE01
TE Internal Description: PLG, 3P, GRY, E, CAP
Nominal Voltage Architecture (V): 12 | 24 | 48
Connector & Housing Type : Housing for Female Terminals
Number of Positions : 3
Sealable : Yes
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Automotive Connectors 3P PLUG, CE01 MOD Grey
Brand: DEUTSCH
Category: Automotive Connectors
TE Internal #: DT06-3S-CE01
TE Internal Description: PLG, 3P, GRY, E, CAP
Nominal Voltage Architecture (V): 12 | 24 | 48
Connector & Housing Type : Housing for Female Terminals
Number of Positions : 3
Sealable : Yes
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Specifications
Manufacturer
DEUTSCH
Product
Housings
Type
3-Way
Number of positions
3 Position
Pitch
10.01 mm (0.394 in)
Mounting style
Cable Mount / Free Hanging
Termination style
Crimp
Mounting angle
Straight
Contact gender
Without Socket Contacts
Tradename
DT
Voltage rating
250 V
Packaging
Bulk
Current rating
13 A
Min operating temp
- 55 C
Max operating temp
. + 125 C
In Stock: 10000
Ready to Ship
Shipping Options
boat
(5 days)
THB
50.00
| Qty | Unit Price | Total |
|---|---|---|
| 10+ | THB 1.47 | THB 14.70 |
| 25+ | THB 1.32 (-10.00%) | THB 33.07 |
| 50+ | THB 1.21 (-18.00%) | THB 60.27 |
